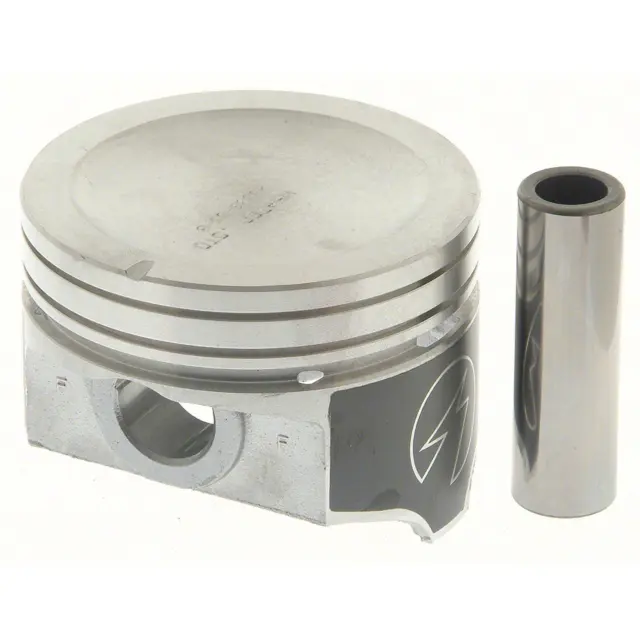

Engine Piston Set - SEALED POWER (H547CP 20)
SEALED POWER - h547cp20
Details
- Brand:
- SKU:
H547CP 20
- GTIN: 00614046227620
- UPC: 614046227620
- Description: Sealed Power® parts provide innovative designs, use leading edge materials and utilize ISO & QS certified manufacturing in order to deliver top quality products that meet the rigorous demands of today's modern engines.
Sealed Power H547CP 20 Engine Piston Set for Chevrolet S10
Cast Piston Set
1983-1980 AMC L4 151CI 2.5L Pontiac; 1979 GM L4 151CI 2.5L Pontiac; 1981-1980 GM L4 151CI 2.5L Pontiac; 1986-1982 GM L4 151CI 2.5L Pontiac; 1992-1987 GM L4 151CI 2.5L Pontiac; More - See Printed Buyers Guide - Condition: New
California Proposition 65
WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov Drop Ship
Direct Shipping From Supplier [*]
Some products available are shipped directly from the manufacturer or supplier rather than from our own warehouse. This allows us to offer you a wider selection of parts at competitive prices. When an item shows "Drop Ship" the supplier currently has it in stock and it will typically ship within 1–2 business daysKey Product Benefits
- Helps improve cylinder sealing for less blow-by
- Retains standard ring gaps in top groove
- DUROSHIELD® skirt-coated piston
- Moly-graphite coating extends engine life
- Reduces friction for higher fuel economy
- Prevents damage from inadequate lubrication on start-up
Additional Information
| Brand | Sealed Power |
| Assembly Lubricant Included | No |
| Bore Diameter | 101.6 |
| Compression Height | 1.560 |
| Grade Type | Premium |
| Head Illustration | 28 |
| Head Type | Recessed Head .165 deep x 3.120 dia. w/shallow oil ring groove for low tension oil ring - 9.0:1 C.R.; DUROSHIELD~ skirt coated piston |
| Minimum Clearance | See Piston Fitting Information on carton label |
| Oil Ring Thickness | 0.1875 |
| Oversized | Yes |
| Oversized Amount | 0.020 |
| Part Description | Engine Piston |
| Pin Offset (inch) | 0.04 |
| Pin Offset (mm) | 1.016 |
| Piston Material | Hypereutectic |
| Piston Pin Outside Diameter | 0.9275 |
| Second Compression Ring Thickness | 0.0781 |
| Top Compression Ring Thickness | 0.0625 |
| UPC | 00614046227620 |
