B8 8100 (Bypass) - Suspension Shock Absorber - Bilstein (25-288155)
Bilstein - 25288155
- Sale Price: $1,342.04
Details
- Brand:
- SKU:
25-288155
- GTIN: 00651860878645
- UPC: 651860878645
- Positions: Rear Left

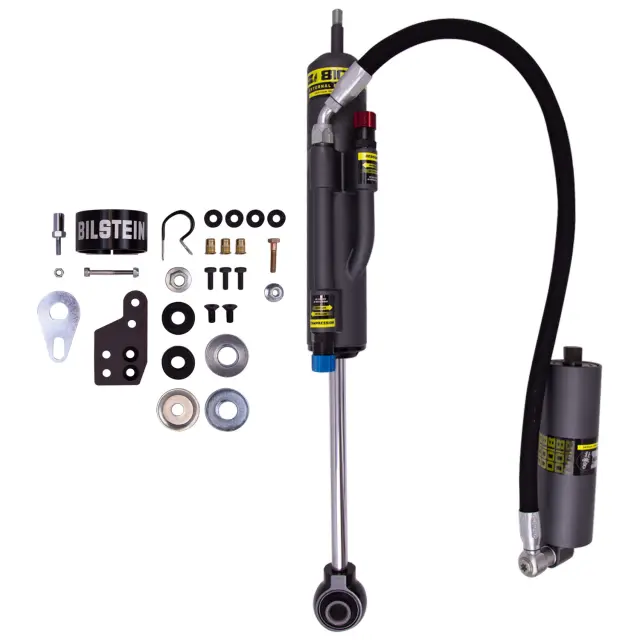

- Description: Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.
60mm Shock Absorber
Toyota FJ 4x4; RL; 8100 Bypass; 0-1.5"
Suspension Shock Absorber
B8 8100 (Bypass) - Suspension Shock Absorber - Condition: New
California Proposition 65
WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov - Sale Price: $1,342.04
Drop Ship
Direct Shipping From Supplier [*]
Some products available are shipped directly from the manufacturer or supplier rather than from our own warehouse. This allows us to offer you a wider selection of parts at competitive prices. When an item shows "Drop Ship" the supplier currently has it in stock and it will typically ship within 1–2 business daysKey Product Benefits
- Dual tube external bypass offers position sensitive damping with independent adjustment for rebound and compression
- Incremental flow adjuster offers finite and incremental changes in damping force for precise adjustments
- 60mm large bore hard anodized aluminum piston offers a greater range of damping control and delivers exceptional long-term durability
Additional Information
| Adjustable Damping | Double Adjustable Compression and Rebound with Click Adjuster Knobs |
| Body Design | Bypass Body (Non-Coilover) |
| Boot Included | No |
| Collapsed Length (in) | 14.72 |
| Collapsed Length (mm) | 374.0 |
| Extended Length (in) | 24.09 |
| Extended Length (mm) | 612.0 |
| Finish | EVO Grey |
| Internal Design | Monotube |
| Lower Mount Type | Eye 19.25mm |
| Parttype | Shocks / Struts |
| Piston Diameter | 60mm |
| Prop 65 (y/n) | Y |
| Prop 65 - Short Label | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Reservoir | Yes |
| Segment | Light Truck |
| Series | B8 8100 (Bypass) |
| Spring Seat Included | No |
| Title | Bilstein Shock Absorbers |
| UPC | 00651860878645 |
| Upper Mount Type | Stem |
