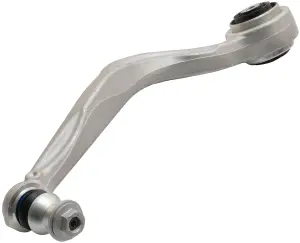

Control Arm and Ball Joint Assembly - DELPHI (TC8386)
DELPHI - tc8386
Sale Price$102.48
Description : Delphi's OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi's OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi's extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.
Control Arm and Ball Joint Assembly
Control Arm and Ball Joint Assembly
- Return Policy
- Min. 12 Months
- Safe, Secure Checkout
Product Details
Description
Delphi's OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi's OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi's extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.
Control Arm and Ball Joint Assembly
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Part Number (MPN)
TC8386
Brand
SKU
TC8386
UPC / GTIN
689604387641 / 00689604387641
Condition
New
Position
Front Left Lower
Disclaimer
WARNING: This product can expose you to chemicals including Carbon Black, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
Brand
Delphi
Adjustable
No
Ball Joint Included
Yes
Ball Joint Mounting Type
Machined
Ball Joint Stud Length
26.50<br />1.043
Ball Joint Stud Type
Threaded
Bearing Material
Plastic
Boot Color
Black
Boot Material
Chloroprene Rubber (CR)
Bushing Color
Black
Bushing Inside Diameter
14.20<br />0.559
Bushing Length
80.00<br />3.150
Bushing Material
Rubber
Bushings Included
Yes
Control Arm Color
Gray
Control Arm Construction
Casting/Forged
Control Arm Material
Aluminum
Control Arm Maximum Length
526.00<br />20.709
Control Arm Maximum Width
106.80<br />4.205
Distance Between Bushings
446.50<br />17.579
Dust Boot Included
Yes
Dust Boot Material
Chloroprene Rubber (CR)
Finish
Uncoated
Grade Type
Premium
Greaseable
No
Locking Nut Included
Yes
Mounting Hardware Included
Yes
Mounting Hole Diameter
14.20<br />0.559
Mounting Hole Quantity
1
Position(s)
Front Left Lower
Pre-Greased
Yes
Steering Type
Power
Thread Direction
Clockwise (Right)
| Year | Make | Model | Body & Trim | Engine & Transmission |
|---|---|---|---|---|
Vehicle #1
Year
Make
Model
Body & Trim
Engine & Transmission
| Brand | Equivalent Part Numbers |
|---|---|
BrandEquivalent Part Numbers
Beck Arnley
1028142, 101-8142
DELPHI
TC8386
Dorman
526297
Dorman - OE Solutions
526-297
MEVOTECH
CMS101515, GS101515
Mercedes-Benz
A 205 330 17 05, 205 330 17 05
Moog
RK623647
