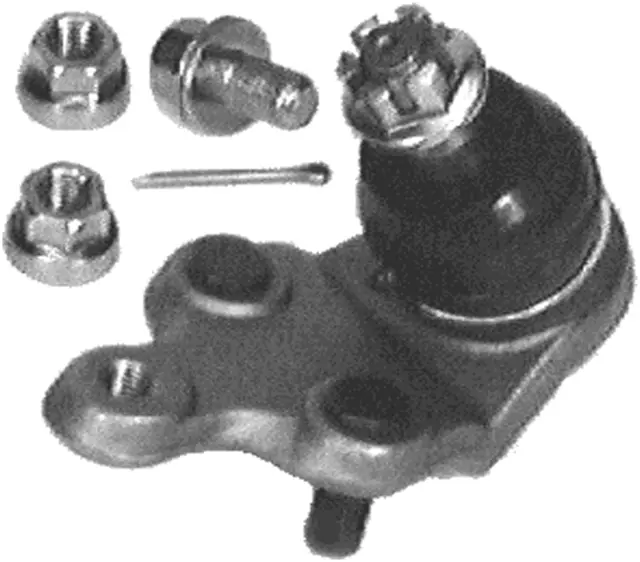

Ball Joint - DELPHI (TC409)
DELPHI - tc409
Sale Price$19.83
Description : Delphi's OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi's OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi's extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.
Ball Joint
Ball Joint
- Return Policy
- Min. 12 Months
- Safe, Secure Checkout
Product Details
Description
Delphi's OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi's OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi's extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.
Ball Joint
Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Part Number (MPN)
TC409
Brand
SKU
TC409
UPC / GTIN
689604274040 / 00689604274040
Condition
New
Position
Front Lower
Disclaimer
WARNING: This product can expose you to chemicals including Ethylene Thiourea, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Brand
Delphi
Adjustable
No
Ball Joint Assembly
Yes
Bushing Quantity
0
Castle Nut Included
No
Cotter Pin Hole
No
Cotter Pin Included
No
Distance Between Mounting Holes
35.00<br />44.00
Dust Boot Included
Yes
Dust Boot Material
Rubber
Grease Fitting Included
No
Greaseable
No
Height
3.307<br />84.00
Material
Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040
Maximum Outside Diameter
1.693<br />43.00
Mount Plate Included
No
Mounting Bolt Head Diameter
16.00<br />19.60<br />0.770<br />0.630
Mounting Bolt Length
35.00<br />36.40<br />1.430<br />1.380
Mounting Bolt Shank Diameter
10.00<br />10.50<br />0.410<br />0.390
Mounting Bolt Thread Length
22.00<br />30.00<br />0.870<br />1.180
Mounting Bolts Included
Yes
Mounting Hardware Included
Yes
Mounting Hole Quantity
3
Mounting Type
Bolt-In
Position(s)
Front Lower
Stud Tapered End 1 Diameter
0.61<br />15.5
Stud Tapered End 2 Diameter
0.709<br />18
Stud Thread Length
0.76<br />19.3
Stud Type
Threaded
Suspension Grade Type
Standard Replacement
Tapered Stud
Yes
Washers Included
Yes
Width
70
| Year | Make | Model | Body & Trim | Engine & Transmission |
|---|---|---|---|---|
Vehicle #1
Year
Make
Model
Body & Trim
Engine & Transmission
| Brand | Equivalent Part Numbers |
|---|---|
BrandEquivalent Part Numbers
ACDelco
19263322, 45D2127, 46D2127A
Altrom Group
ATM 1012413
Beck Arnley
101-3974
Bestbuy
CGK9342
Centric Parts
610.44005
Dorman
533-306, B9342, B9342PR
Driveworks
DW-K9342
