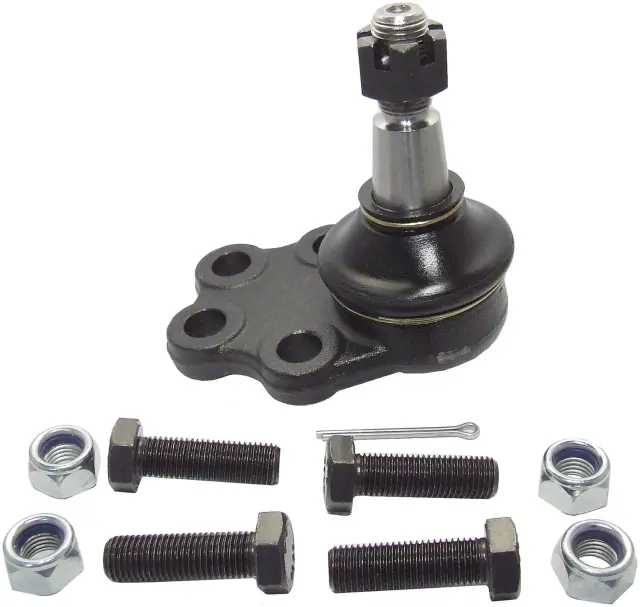

Ball Joint - DELPHI (TC1627)
DELPHI - tc1627
Sale Price$76.42
Description : Delphi's OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi's OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi's extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.
Ball Joint
Ball Joint
- Return Policy
- Min. 12 Months
- Safe, Secure Checkout
Product Details
Description
Delphi's OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi's OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi's extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.
Ball Joint
Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Part Number (MPN)
TC1627
Brand
SKU
TC1627
UPC / GTIN
689604277133 / 00689604277133
Condition
New
Position
Front Lower
Disclaimer
WARNING: This product can expose you to chemicals including Carbon Black, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
Brand
Delphi
Adjustable
No
Ball Joint Assembly
Yes
Bushings Included
No
Castle Nut Included
Yes
Cotter Pin Hole
Yes
Cotter Pin Included
Yes
Dust Boot Included
Yes
Dust Boot Material
Rubber
Grease Fitting Included
No
Greaseable
No
Height
4.488<br />114.00
Material
Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040
Maximum Outside Diameter
3.268<br />83.00
Mount Plate Included
No
Mounting Bolt Head Diameter
0.827<br />21.00
Mounting Bolt Length
1.575<br />40.00
Mounting Bolt Shank Diameter
12.00<br />0.470
Mounting Bolt Thread Length
30.00<br />1.180
Mounting Bolts Included
Yes
Mounting Hardware Included
Yes
Mounting Hole Quantity
4
Mounting Type
Bolt-In
Position(s)
Front Lower
Stud Taper Per Foot
0.167
Stud Tapered End 1 Diameter
0.953<br />24.2
Stud Tapered End 2 Diameter
0.769<br />19.53
Stud Thread Length
1.142<br />29.01
Stud Type
Threaded
Suspension Grade Type
Standard Replacement
Tapered Stud
Yes
Washers Included
Yes
Width
105
Wrench Size
19mm
| Year | Make | Model | Body & Trim | Engine & Transmission |
|---|---|---|---|---|
Vehicle #1
Year
Make
Model
Body & Trim
Engine & Transmission
| Brand | Equivalent Part Numbers |
|---|---|
BrandEquivalent Part Numbers
ACDelco
19289295, 19382593, 45D2277, 46D2277A
Bestbuy
FGK7365
Centric Parts
610.67016, 611.67016
Chrysler
52113 888AB, 52113 889AB, 19144070
Dodge
52113889AA, 52113889AB
Dorman
531-406, 533-217, B7365, B7365PR
Dorman - OE Solutions
531-406
